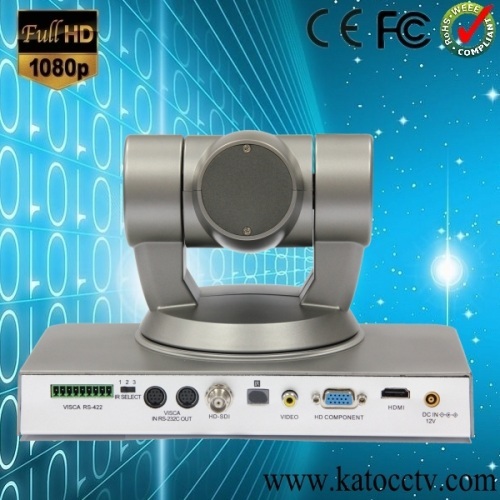

| 1080P HD Video Conference Camera Overview |
KT-HDC is designed for videoconferencing business, adopt SONY FCB-EH6300 Module, 1080P 240X Zoom Lens, built-in high speed PTZ, making users can see tiny or long distance object clearly. Integration design, refined aesthetic shape, operation smoothly, without noise, accurate location, high reliability and long-term stability run, no need for maintenance. Use RS232 multi protocol communication, desktop, tripod, pole and ceiling mount installation, qualified for video conferencing, CCTV remote monitor etc.
| 1080P HD Video Conference Camera Application |
Widely used in Video Conference System, Congress System, Recording System, Interrogation System,Enterprise Training, Business Communication, Remote Education, Telemedicine, Telehealth, Church, Court, Multimedia, Sanatorium, Auditorium, Transportation, Airport and other monitor area.
| 1080P HD Video Conference Camera Specification |
Item No. | KT-HDC |
Image Sensor | 1/2.8 type Exmor CMOS |
Effective Pixels | 1080P 3.27 Mega pixels |
Signal System | 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 720/59.94p, 720/50p,NTSC, PAL |
Horizontal Viewing Angle | 1080p signal output :55.4° (wide-angle) to 2.9° (far-end) 720p signal output:37.6°(wide-angle) to 2.0 ° (far-end) |
Focus system | Auto/Manual |
Lens | 20x optical zoom f = 4.7 to 94.0 mm, F1.6to F3.5 |
Minimum Illumination | 0.5Lux (F1.6) |
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
Shutter Speed | 1/1~1/10000/S, |
Gain | Auto/Manual (-3 ~ +28dB) |
White Balance | Auto/ Indoor/Outdoor/One push Auto/Manual |
S/N Ratio | 50dB |
Pan/Tilt | Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 180° (max. speed: 60°/s) |
Preset Position | 9 by keyboard,255 by PELCO P/D |
Video Output | HD-SDI, Y/Pb/Pr, HDMI,CVBS |
Power | 12V DC (10.8V~13.0V DC) |
Operating Temperature | 0°C~40°C |
Storage Temperature | -20°C~+60°C |
Consumption | Most 25W (DC 12V) |
Dimensions | (L)240×(W)155×(H)142mm |
Weight | 1550g |
Color | Silver white |
Supplied accessories | AC power adapter 12V, IR controller, Component cable, RS232C cable, Ceiling mount bracket, Operation menu |
| 1080P HD Video Conference Camera Accessories |
Model | Description | |
KT-HDC | AC adaptor (1) | |
AC power cable (1) | ||
Component cable (1) | ||
RS232C cable (1) | ||
IR remote commander unit (1) | ||
Ceiling mount bracket (1) | ||
Operating instructions (1) | ||
| ||
Model | Description | |
KT-K410C | Remote Control Unit for the Sony EVI / lifesize / polycom / Cisco Tandberg/ Radvision…… | |
KT-M1 | Omni-directional microphone | |
HDCA01 | HDMI Video Capture Card | |
HDCA02 | SDI Video Capture Card | |
Converter | HDMI to SDI, SDI to HDMI converter, SDI spliter | |
| HD Video Conference Camera Assemble Photos |
| 1080P HD Video Conference Camera Production Base |
Please feel free to contact with me!
